Resounding impact of Drip Irrigation on Productivity

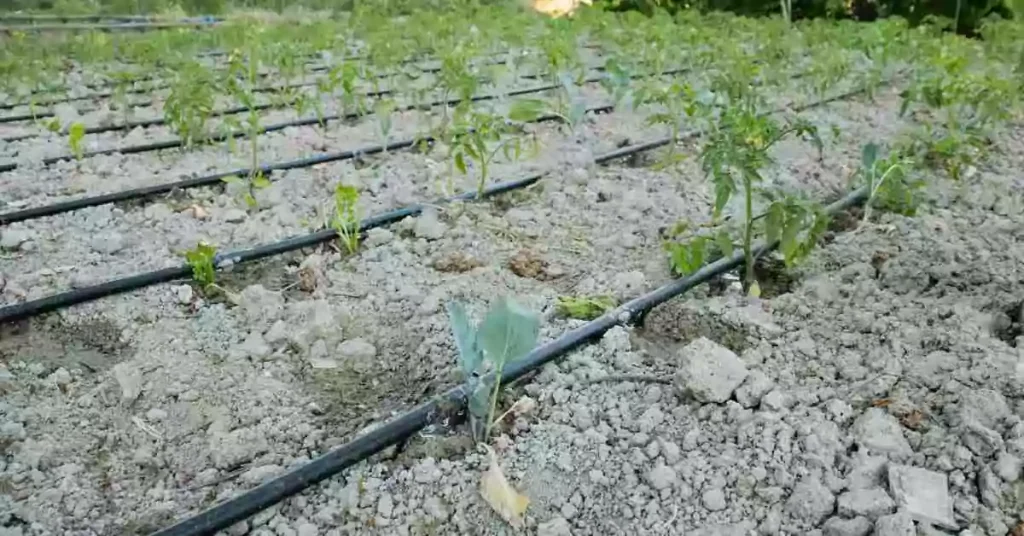

What is drip irrigation?

Drip irrigation is an irrigation method that saves water and improves crop yields. It is also known as trickle irrigation. It involves allowing water to drip slowly to the roots of plants through a network of valves, pipes, tubing, and emitters.

Traditional irrigation methods like flooding or sprinklers apply water uniformly. This irrigation delivers water in small amounts directly to the root zone.

A basic irrigation system includes a water source connection. It also has filters to remove solids that can clog emitters. A pressure regulator controls water pressure.

A network of main pipes branches out into sub-main lines. Lateral tubing branches out further with emitters or drippers. Valves control water flow. Timers or controllers automate irrigation cycles.

Agricultural Water Management

One of the major benefits of this is the substantial water savings it provides compared to traditional irrigation methods like flooding or sprinklers. Drip systems apply water directly to the soil, very close to the plant roots. They use a network of valves, pipes, and emitters.

This targeted delivery means water is deposited exactly where plants need it. Minimal amounts are lost to deep percolation, surface runoff or evaporation.

Studies have found that drip irrigation systems save 30–50% of source water compared to surface irrigation. They save 20–30% compared to sprinklers.

For example, research from California found drip-irrigated fields used 31% less water on average than furrow- or flood-irrigated fields growing the same crops. In water-scarce regions, drip irrigation has allowed the cultivation of crops that would not be possible due to limited water supplies.

Drip systems gently water the soil without disturbing its structure or compacting the surface layers. They apply water at low pressure in localized areas. This improves the water infiltration rate and storage capacity of soils.

Less runoff occurs as water sinks deep into the root zone, where plants can utilize it. Water that would normally be lost due to deep percolation and runoff is conserved through drip. In arid climates, this translates to significant aquifer recharge over large-scale implementation.

Higher Agricultural Crop Yields

In addition to water savings, this contributes to significantly higher yields for many agricultural crops when compared to conventional irrigation methods. There are several interlinked reasons for this:

• Targeted Water Application: By delivering small, frequent amounts of water right at the root zone, drip irrigation meets plant water demands more precisely without soaking the entire soil profile. This minimizes moisture stress periods, which can hamper crop growth and productivity.
• Consistent Soil Moisture: Drip systems maintain a more uniform wetting pattern and consistent soil moisture levels around the root zone throughout the growing season compared to surface irrigation. Optimal and uniform soil moisture content maximizes plant photosynthesis and crop production.
• Fertigation Capabilities: Using drip lines allows fertilizers and nutrients to be injected directly into the irrigation water (fertigation) and dispensed close to roots in optimum amounts without being wasted or polluting other areas. Well-managed fertigation boosts crop nutrition uptake.
• Higher Plant Density: The control afforded by drip allows for closer plant spacing and denser plantings per unit area. Higher plant populations result in increased yields per acre, even without raising individual plant productivity.

Numerous studies have shown drip-irrigated crops can produce 20–90% higher yields than crops grown under comparable conditions and rainfall but without supplemental irrigation.

Impact on Different Crops

The yield-enhancing benefits of drip have been demonstrated for a wide variety of fruits, vegetables, field crops, and perennial tree plantations grown in different agro-climatic conditions worldwide.

Fruits and Vegetables

Tomatoes grown under drip flow can experience yield increases in the range of 30–40%. This is compared to those grown under flood or furrow irrigation. The better distribution of water and nutrients causes the increase. Peppers irrigated with drip systems produce 25–50% higher yields than other surface irrigation methods. Melons and watermelons benefit from reduced foliar diseases under drip. This increases harvests by 15–30%.

Field Crops

Drip-irrigated corn fields have shown yield boosts of 15–30% versus conventional methods. Cereal crops like wheat see 10–25% higher productivity with drip. Cotton grown with drip outperforms non-drip cotton by 10–30%. Soybean yields increase by up to 20% with this irrigation. This is relative to center pivot or furrow irrigation.

Orchards and Vineyards

Citrus orchards apply this irrigation to maximize the juiciness and concentration of fruits. Yield increases of 15–40% have been observed. Nut crops like almonds and pistachios produce 10–30% more per acre under drip systems. Grape vines enjoy targeted drip watering and fertilizer. This boosts harvests by 15–35%, depending on variety.

Drip irrigation delivers water and fertilizers to root zones. This allows farmers to optimize productivity from their high-value perennial crops. It also helps them optimize productivity from annual vegetable and field crops. Growers using this efficient irrigation method can make bigger profits. Higher and more consistent yields are the reason.

Cost Effectiveness

While these irrigation systems require an initial investment for installation, the long-term savings from water and fertilizer conservation, along with increased harvests and revenues, make them a cost-effective option for many farmers.

The upfront expenses include pipes, drip tape or tubing, filters, flush valves, emitters and other hardware. An automated system with controls and timers costs more than a manual setup. Installation requires labor for laying out the piping network and is relatively inexpensive for row crops but pricier for orchards that need individual emitters for each tree.

According to the USDA, typical costs range from $500–$2000 per acre for row crops to $1500-$5000 per acre for orchards, depending on system complexity and design. However, many states and countries offer cost-sharing programs and subsidies to encourage the adoption of more efficient irrigation technologies.

But studies have shown drip irrigation can create savings worth several times the installation expenditures over the service life of the system.

• Water savings of 30–50% or more lower the pumping costs.
• Fertilizer use declines by 15–30% due to precise placement, lowering input expenses.
• Higher crop yields and revenues boost income. Tomatoes, for example, see a net return increase of $2000–3000 per acre with drip.

Based on these factors, the payback period for drip systems ranges from 2–5 years for row crops up to 7–10 years for perennial orchards. Drip systems have service lives of over 20 years. They provide long-term budget benefits and a positive return on the initial investment for adopting farmers.

Environmental Benefits

In addition to economic advantages, drip irrigation systems result in various ecological benefits compared to other surface irrigation methods:

• Less Water Wastage: By precisely delivering water only to the crop root zone, drip reduces water losses from evaporation, deep percolation and runoff by 30–60%. This conserves freshwater resources.
• Reduced Soil Erosion: Low-pressure, targeted application of water through emitters near plants minimizes soil-disturbing surface flows. Minimal soil movement occurs, preventing precious topsoil loss through erosion.
• Improved Water Productivity: Less fertilizer leaching and runoff occur with this irrigation placement of chemicals precisely at the root zone. This decreases pollution of surface and groundwater from agricultural nutrients.
• Energy Efficiency: Drip systems use up to 50% less water volume, saving the power required for pumping, pressurizing and distributing irrigation supplies over long distances.
• Habitat Protection: Recharging less water means drip puts less stress on aquatic ecosystems dependent on irrigation returns. It also allows cultivation on marginal lands with poor drainage that is unsuitable for flooding.
• Carbon Sequestration: Healthier, higher-yielding drip-irrigated crops remove more carbon dioxide from the atmosphere via photosynthesis than rain-fed or conventionally irrigated fields.

Drip Irrigation System Design

Proper planning and design are essential for drip irrigation systems to efficiently distribute water and fertilizers while meeting crop water needs. Some important considerations include:

• Choosing the Right Components: selecting durable but affordable emitters, filters, valves and tubing suitable for the crop type, soil conditions and environmental factors like winds. Common options are drip tape, drip lines or point-source emitters.
• Layout and Spacing: Laying out the drip network with appropriate spacing of driplines or emitters depending on crop water consumption, rooting depth and soil infiltration rate.
• Determining Operating Pressure: Pressure is set based on component specifications, line lengths and terrain to ensure a uniform flow of water to all emitters. Pressure-compensating emitters ensure even flow.
• Establishing Irrigation Schedules: The frequency and duration of irrigation cycles depend on local weather, crop stage, soil type and its water holding capacity. Proper scheduling prevents over- or under-watering.
• Fertilizer Application: Systems that co-lay fertilizer-dispensing lines or integrate fertilizer pumping allow balanced fertigation for optimum yields without wastage.
• Filtration and Flushing: Filters screen out particles that clog emitters, and flush valves help flush out filtered debris, extending system life.

Trained professionals carefully design drip systems. This ensures water, fertilizers, and chemicals are used judiciously. It maximizes agricultural productivity in a sustainable manner. Precision technologies can now automate and optimize many irrigation functions.

Operation and Maintenance

While drip systems require periodic servicing, optimized maintenance helps ensure long-term productivity.

Flushing and Filtration: Clearing filters every 2-4 weeks and flushing entire laterals bi-annually removes sediments to avoid emitter clogging. Proper filtration is crucial based on water quality.

Emitter Cleaning and Replacement: Visual checks identify blocked emitters, with replacement every 2–5 years, depending on water impurities. Cleaning solutions unclog mild blockages.

Checking for leaks: Routine inspections locate damaged tubes, fittings or emitters for timely repairs to maintain uniform water application.

Pressure Regulation: Fluctuations are adjusted to provide consistent flow rates and prevent line bursts from excessive pressure build-up.

System Inspection: Detailed annual audits identify worn components and redesign hydraulic performance based on changing cropping needs over the years.

Records Maintenance: Document installation details, components used, and maintenance history. Also, record crop yields. This information helps troubleshoot issues and analyze cost-benefits over the system’s lifetime.

Government Initiatives

Many governments recognize drip irrigation as an efficient water management tool and are actively promoting its adoption among farmers through various schemes and programs.

Funding and Subsidies: State incentives for drip include low-interest crop loans, installation reimbursement grants up to 50–75%, and tax benefits for purchasing irrigation equipment. For example, Mexico provides a 75% subsidy through its MasAgua program.

Awareness Campaigns: Extension services conduct farmer outreach about the water-yield advantages of drip through demonstrations in fields, publications, and social media. Workshops train farmers in layout, operation, and maintenance.

Capacity Building: Institutions provide certification courses to develop local expertise in designing, installing, and troubleshooting drip systems. Research also improves system components suited for different crops and soils.

Water Pricing Policies: Some regions price irrigation water differently based on method, making surface irrigation more expensive to incentivize efficient drip use. Groundwater extraction limits also indirectly drive drip adoption.

Financing Mechanisms: Banks give preferential credit lines, and farmer groups bulk purchase supplies at reduced rates through cooperative arrangements. Private sector involvement expands distribution and repair networks in rural areas.

Challenges and Limitations

While this irrigation delivers numerous benefits, there are also some challenges to address for optimal performance:

High Initial Cost: Setting up drip systems involves significant investment, which small or resource-poor farmers may find difficult to afford upfront. Subsidies help address this barrier.

Maintenance Requirements: Drip networks need periodic flushing, filter cleaning and emitter checks to prevent clogging. This maintenance requires knowledge and manpower.

Sensitivity to Water Quality: Hard water, suspended solids or bacterial buildup can quickly clog emitters if the source water is not properly filtered. Pre-treatment is important.

Damage Risk from Pests and Weather: Rodents may chew on and damage drip lines. Floods or heavy winds can dislodge above-ground systems. Buried installations minimize these risks.

Design Complexity: Improperly designed layouts, operating pressures or scheduling can lead to non-uniformity issues like over-watering in some areas. Expert input is advisable.

Farmer Mindset: Traditional farmers take time to adapt to new methodologies, especially for perennial crops already established under alternate systems. Training alleviates resistance.

Future Outlook and Advancements

The success of drip irrigation techniques in saving water resources and enhancing yields has paved the way for ongoing research and new developments.

Precision Agriculture Integration: Drip systems are being linked to sensors, IoT, drones and smart devices for real-time monitoring of soil moisture and fertility and automation of site-specific irrigation.

Non-Conventional Water Use: Technologies like treated wastewater, saline agriculture and fog harvesting are expanding types of water sources compatible with drip to boost cultivation in water scarcity areas.

Renewable Energy Pumping: Solar panels and wind turbines now power drip pressurization and fertigation systems off-grid, especially for smallholders with unstable electricity access.

Biodegradable Materials: Newly developed bioplastics, composites and biopolymers are creating eco-friendly alternatives to traditional drip tape and components that break down over time.

Variable Rate Emitters: Variable flow drippers facilitate precision water application based on changing crop needs, like different plant growth stages and soil zones within fields.

Internet of Drainage Things: Integration of sensors into drainage lines monitors subsurface moisture levels for precision irrigation and early warning of wastewater issues.

FAQs

Conclusion

Drip irrigation is increasingly recognized globally as an efficient and productive method of irrigation. By delivering water and nutrients directly to plant roots through a network of pipes, tubing and emitters, it allows for precise control of the irrigation process.

This targeted approach leads to significant water saving compared to conventional irrigation methods. These include flooding and sprinklers.

At the same time, the ability of drip systems to meet crop water demands and allow fertigation boosts yields for a wide variety of fruits, vegetables and field crops.

The use of this irrigation also helps minimize environmental impacts. It reduces soil erosion, water pollution, and the depletion of water resources. This is done by minimizing waste and deep percolation losses.

While initial installation costs may be higher than other technologies, active government support through subsidies, financing schemes and capacity-building programs is making drip accessible to more growers globally.

Continued research is also addressing challenges to further optimize system functionality for precision agriculture.
